Getting Started
[1]:
import numpy as np
import matplotlib.pyplot as plt
import jax.numpy as jnp
import WDM
import TimeFrequencyWaveforms as TFW
from TimeFrequencyWaveforms.code import utils
import time
[2]:
dt = 1.0
Nt, Nf = 512, 128
N = Nt * Nf
wdm = WDM.WDM.WDM_transform(dt=dt, Nf=Nf, N=N, q=8, calc_m0=True)
print(f"Sampling rate fs = {1/dt} Hz")
print(f"Duration T = {N} s = {N/(60*60*24):.1f} days")
print(f"Wavelet time resolution dT = {wdm.dT:.1f} s = {wdm.dT/(60*60):.1f} hours")
print(f"Wavelet frequency resolution dF = {1.0e3*wdm.dF:.1f} mHz")
Sampling rate fs = 1.0 Hz
Duration T = 65536 s = 0.8 days
Wavelet time resolution dT = 128.0 s = 0.0 hours
Wavelet frequency resolution dF = 3.9 mHz
[3]:
r"""
m = wdm.Nf//2
fig, ax = plt.subplots(figsize=(5,4))
for i, eps in enumerate([0.1, 0.5, 0.9]):
ax.plot(np.arange(0, wdm.Nt, 2),
[TFW.new_waveforms.cnm(wdm, n, m, (m+eps)*wdm.dF) for n in range(0, wdm.Nt, 2)],
color='C{}'.format(i), ls='-', label=r'$f=f_{\rm ref}+'+f'{eps}'+'\\Delta f$')
ax.set_xlim(0, wdm.Nt-1)
ax.set_xlabel('Wavelet index n')
ax.set_ylabel(r'$c_{n,m}(f)$')
ax.legend(loc='center right', frameon=False)
plt.show()
"""
[3]:
"\nm = wdm.Nf//2\n\nfig, ax = plt.subplots(figsize=(5,4))\nfor i, eps in enumerate([0.1, 0.5, 0.9]):\n ax.plot(np.arange(0, wdm.Nt, 2),\n [TFW.new_waveforms.cnm(wdm, n, m, (m+eps)*wdm.dF) for n in range(0, wdm.Nt, 2)],\n color='C{}'.format(i), ls='-', label=r'$f=f_{\\rm ref}+'+f'{eps}'+'\\\\Delta f$')\n\nax.set_xlim(0, wdm.Nt-1)\n\nax.set_xlabel('Wavelet index n')\nax.set_ylabel(r'$c_{n,m}(f)$')\n\nax.legend(loc='center right', frameon=False)\n\nplt.show()\n"
[4]:
r"""
fig, ax = plt.subplots(figsize=(5,4))
f_vals = np.linspace(0, 2*wdm.dF, 50)
f_ref = (wdm.Nf//2)*wdm.dF
for i, m in enumerate(np.arange(wdm.Nf//2-2, wdm.Nf//2+3)):
ax.plot(f_vals,
[TFW.new_waveforms.cnm(wdm, wdm.Nt//2, m, f+f_ref, fdot=1.0e-5) for f in f_vals],
color='C{}'.format(i), ls='-', label=r'$m={}$'.format(m))
ax.set_xlim(0, 2*wdm.dF)
ax.set_xticks([0, 0.5*wdm.dF, wdm.dF, 1.5*wdm.dF,2*wdm.dF],
labels=[r'$0$', r'$\Delta f/2$', r'$\Delta f$', r'$3\Delta f/2$', r'$2\Delta f$'])
ax.set_xlabel(r'Frequency $f-f_{\rm ref}$ [Hz]')
ax.set_ylabel(r'$c_{nm}(f, \dot{f})$')
ax.legend(loc='upper center', frameon=False)
plt.show()
"""
[4]:
"\nfig, ax = plt.subplots(figsize=(5,4))\n\nf_vals = np.linspace(0, 2*wdm.dF, 50)\n\nf_ref = (wdm.Nf//2)*wdm.dF\n\nfor i, m in enumerate(np.arange(wdm.Nf//2-2, wdm.Nf//2+3)):\n ax.plot(f_vals,\n [TFW.new_waveforms.cnm(wdm, wdm.Nt//2, m, f+f_ref, fdot=1.0e-5) for f in f_vals],\n color='C{}'.format(i), ls='-', label=r'$m={}$'.format(m))\n\nax.set_xlim(0, 2*wdm.dF)\nax.set_xticks([0, 0.5*wdm.dF, wdm.dF, 1.5*wdm.dF,2*wdm.dF], \n labels=[r'$0$', r'$\\Delta f/2$', r'$\\Delta f$', r'$3\\Delta f/2$', r'$2\\Delta f$'])\n\nax.set_xlabel(r'Frequency $f-f_{\\rm ref}$ [Hz]')\nax.set_ylabel(r'$c_{nm}(f, \\dot{f})$')\n\nax.legend(loc='upper center', frameon=False)\n\nplt.show()\n"
[5]:
fdot_grid_spec = (-1.5e-6, 1.5e-6, 5)
transformer = TFW.code.TD_to_TFD_transform.Transformer(wdm, num_freq_points=50, num_pixels=10, fdot_grid_spec=fdot_grid_spec)
[6]:
par = {'phic': 1.0, 'tc':32768.0, 'w':10000.0, 'f':0.05, 'fdot':1.0e-6}
def amplitude(t, par):
tc = par['tc']
w = par['w']
return jnp.exp(-0.5*((t-tc)/w)**2)
def phase(t, par):
tc = par['tc']
f = par['f']
fdot = par['fdot']
phic = par['phic']
return phic + 2.*jnp.pi*f*(t-tc) + jnp.pi*fdot*(t-tc)**2
def frequency(t, par):
f = par['f']
tc = par['tc']
fdot = par['fdot']
return f + fdot * (t-tc)
def frequency_deriv(t, par):
fdot = par['fdot']
return fdot * jnp.ones_like(t)

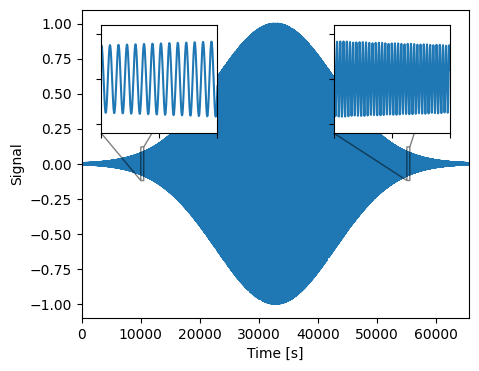

fig, ax = plt.subplots(figsize=(5,4))
ax.plot(wdm.times, amplitude(wdm.times, par)*jnp.cos(phase(wdm.times, par)))
# inset Axes....
x1, x2, y1, y2 = 10000, 10500, -0.12, 0.12 # subregion of the original image
axins = ax.inset_axes(
[0.05, 0.6, 0.3, 0.35],
xlim=(x1, x2), ylim=(y1, y2), xticklabels=[], yticklabels=[])
axins.plot(wdm.times, amplitude(wdm.times, par)*jnp.cos(phase(wdm.times, par)))
ax.indicate_inset_zoom(axins, edgecolor="black")
# inset Axes....
x1, x2, y1, y2 = 55000, 55500, -0.12, 0.12 # subregion of the original image
axins_ = ax.inset_axes(
[0.65, 0.6, 0.3, 0.35],
xlim=(x1, x2), ylim=(y1, y2), xticklabels=[], yticklabels=[])
axins_.plot(wdm.times, amplitude(wdm.times, par)*jnp.cos(phase(wdm.times, par)))
ax.indicate_inset_zoom(axins_, edgecolor="black")
ax.set_xlabel("Time [s]")
ax.set_ylabel("Signal")
ax.set_xlim(wdm.times[0], wdm.times[-1])
plt.show()
[7]:
t0 = time.time()
t_n = jnp.arange(wdm.Nt)*wdm.dT
A_n = amplitude(t_n, par)
Phi_n = phase(t_n, par)
f_n = frequency(t_n, par)
fdot_n = frequency_deriv(t_n, par)
wnm = transformer.transform(A_n, Phi_n, f_n, fdot_n)
wp, wc = jnp.real(wnm), jnp.imag(wnm)
tc = time.time()
print(f"Elapsed time: {tc - t0} seconds")
Elapsed time: 0.31917500495910645 seconds
[8]:
t0 = time.time()
Wp = wdm(amplitude(wdm.times, par)*jnp.cos(phase(wdm.times, par)))
Wc = wdm(amplitude(wdm.times, par)*jnp.sin(phase(wdm.times, par)))
tc = time.time()
print(f"Elapsed time: {tc - t0} seconds")
Elapsed time: 0.12111616134643555 seconds
[9]:

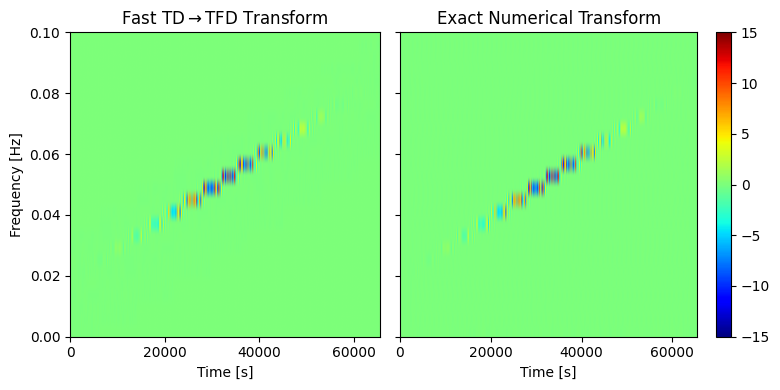

fig, axes = plt.subplots(figsize=(8,4), ncols=2, sharey=True, width_ratios=[1, 1.2])
im = axes[0].imshow(wp.T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
im_ = axes[1].imshow(Wp.T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
fig.colorbar(im_, ax=axes[1])
axes[0].set_ylim(0, 0.1)
axes[0].set_ylabel("Frequency [Hz]")
axes[0].set_xlabel("Time [s]")
axes[1].set_xlabel("Time [s]")
axes[0].set_xticks(np.arange(0, 70000, 20000))
axes[1].set_xticks(np.arange(0, 70000, 20000))
axes[0].set_title(r"Fast TD$\rightarrow$TFD Transform")
axes[1].set_title("Exact Numerical Transform")
plt.tight_layout()
plt.show()
[10]:
def wavelet_inner_product(wdm : WDM.WDM.WDM_transform,
Anm : jnp.ndarray, Bnm : jnp.ndarray,
f_low : float=None, f_high : float=None,
t_low : float=None, t_high : float=None) -> float:
"""
Compute white TF noise inner product between two signals with wavelet
coefficients Anm and Bnm. This is a sum over the time-frequency grid.
The optional arguments allow this sum to be restricted to a sub-region
of the time-frequency grid.
Parameters
----------
wdm : WDM.WDM.WDM_transform
An instance of the WDM wavelet transform class.
Anm : jnp.ndarray
Wavelet coefficients of first signal, shape=(Nt, Nf).
Bnm : jnp.ndarray
Wavelet coefficients of second signal, shape=(Nt, Nf).
f_low : float
Lower frequency bound of inner product. Optional.
f_high : float
Upper frequency bound of inner product. Optional.
t_low : float
Lower time bound of inner product. Optional.
t_high : float
Upper time bound of inner product. Optional.
Returns
-------
AB : float
The inner product.
"""
tn = wdm.dT * jnp.arange(wdm.Nt)
fm = wdm.dF * jnp.arange(wdm.Nf)
t_low = t_low if t_low is not None else 0.0
t_high = t_high if t_high is not None else wdm.T
f_low = f_low if f_low is not None else 0.0
f_high = f_high if f_high is not None else wdm.f_Ny
mask = jnp.outer( jnp.logical_and(tn > t_low, tn < t_high),
jnp.logical_and(fm > f_low, fm < f_high) )
AB = jnp.sum(Anm[mask]*Bnm[mask])
return AB
edge = 50
f_low, f_high = 0.05, 0.1
wW = wavelet_inner_product(wdm, wp, Wp, f_low=f_low, f_high=f_high, t_low=edge*wdm.dT, t_high=wdm.T-edge*wdm.dT)
ww = wavelet_inner_product(wdm, wp, wp, f_low=f_low, f_high=f_high, t_low=edge*wdm.dT, t_high=wdm.T-edge*wdm.dT)
WW = wavelet_inner_product(wdm, Wp, Wp, f_low=f_low, f_high=f_high, t_low=edge*wdm.dT, t_high=wdm.T-edge*wdm.dT)
MM = 1.0 - wW/jnp.sqrt(ww*WW)
print(f"Mismatch = {MM:.2e}")
Mismatch = 1.49e-04
[11]:

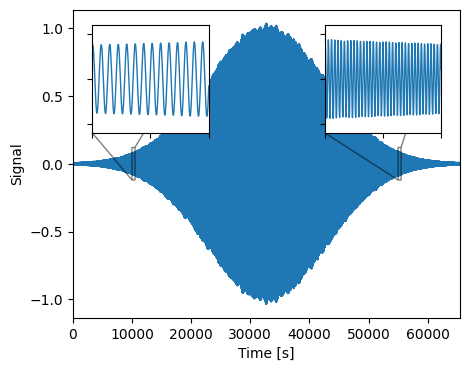

fig, ax = plt.subplots(figsize=(5,4))
ax.plot(wdm.times, wdm.idwt(wp), color='C0', ls='-')
# inset Axes....
x1, x2, y1, y2 = 10000, 10500, -0.12, 0.12 # subregion of the original image
axins = ax.inset_axes(
[0.05, 0.6, 0.3, 0.35],
xlim=(x1, x2), ylim=(y1, y2), xticklabels=[], yticklabels=[])
axins.plot(wdm.times, wdm.idwt(wp), color='C0', ls='-', lw=1)
ax.indicate_inset_zoom(axins, edgecolor="black")
# inset Axes....
x1, x2, y1, y2 = 55000, 55500, -0.12, 0.12 # subregion of the original image
axins_ = ax.inset_axes(
[0.65, 0.6, 0.3, 0.35],
xlim=(x1, x2), ylim=(y1, y2), xticklabels=[], yticklabels=[])
axins_.plot(wdm.times, wdm.idwt(wp), color='C0', ls='-', lw=1)
ax.indicate_inset_zoom(axins_, edgecolor="black")
ax.set_xlabel("Time [s]")
ax.set_ylabel("Signal")
ax.set_xlim(wdm.times[0], wdm.times[-1])
plt.show()
[12]:
import matplotlib.patches as patches
CNM, _, _, SHATNM = transformer.cnm_snm(A_n, Phi_n, f_n, fdot_n)
WNM = transformer.transform(A_n, Phi_n, f_n, fdot_n)
fig, axes = plt.subplots(figsize=(16,4), ncols=4, sharey=True, width_ratios=[1, 1, 1, 1.2])
M = jnp.zeros_like(CNM)
M = M.at[wdm.Nt//2-1,:].set(CNM[wdm.Nt//2-1,:])
M = M.at[wdm.Nt//2,:].set(CNM[wdm.Nt//2,:])
im = axes[0].imshow(M.T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
rect = patches.Rectangle(((wdm.Nt//2-8)*wdm.dT, (wdm.Nf//2-2)*wdm.dF), 14*wdm.dT, 7*wdm.dF, linewidth=1, edgecolor='k', facecolor='none')
axes[0].add_patch(rect)
im_ = axes[1].imshow(CNM.T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
rect = patches.Rectangle((0, (wdm.Nf//2-2)*wdm.dF), wdm.T, 7*wdm.dF, linewidth=1, edgecolor='k', facecolor='none')
axes[1].add_patch(rect)
z_n = jnp.floor((f_n-transformer.f_ref)/(2*wdm.dF)).astype(int)
CNM_shifted = 0.5 * ( utils.row_roll(CNM, +2*z_n) +
utils.row_roll(CNM, -2*z_n) +
transformer.alt * utils.row_roll(SHATNM, +2*z_n) -
transformer.alt * utils.row_roll(SHATNM, -2*z_n) )
im__ = axes[2].imshow(CNM_shifted.T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
axes[2].plot([0,wdm.T],
[transformer.f_ref + 2*z_n[0]*wdm.dF-2*wdm.dF, transformer.f_ref + 2*z_n[-1]*wdm.dF-2*wdm.dF],
color='k', ls='-', lw=1)
axes[2].plot([0,wdm.T],
[transformer.f_ref + 2*z_n[0]*wdm.dF+5*wdm.dF, transformer.f_ref + 2*z_n[-1]*wdm.dF+5*wdm.dF],
color='k', ls='-', lw=1)
im___ = axes[3].imshow(jnp.real(WNM).T, aspect='auto', origin='lower', vmin=-15, vmax=15,
extent=[0., wdm.T, 0., wdm.f_Ny], cmap='jet')
fig.colorbar(im___, ax=axes[3])
axes[0].set_ylabel("Frequency [Hz]")
axes[0].set_xlabel("Time [s]")
axes[1].set_xlabel("Time [s]")
axes[2].set_xlabel("Time [s]")
axes[3].set_xlabel("Time [s]")
axes[0].set_xticks(np.arange(0, 70000, 20000))
axes[1].set_xticks(np.arange(0, 70000, 20000))
axes[2].set_xticks(np.arange(0, 70000, 20000))
axes[3].set_xticks(np.arange(0, 70000, 20000))
axes[0].set_title("Step 3")
axes[1].set_title("Step 4")
axes[2].set_title("Step 5")
axes[3].set_title("Step 6")
plt.tight_layout()
plt.show()
[ ]:
